Description

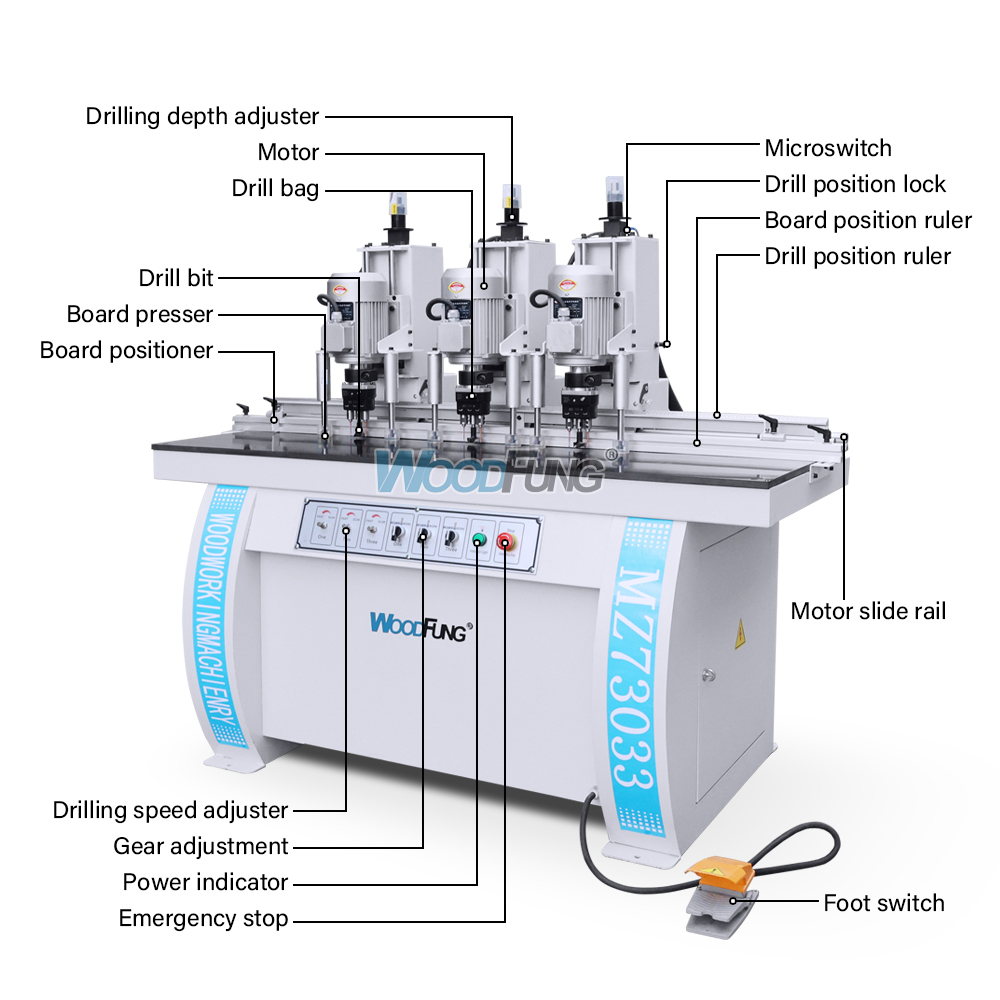

Features

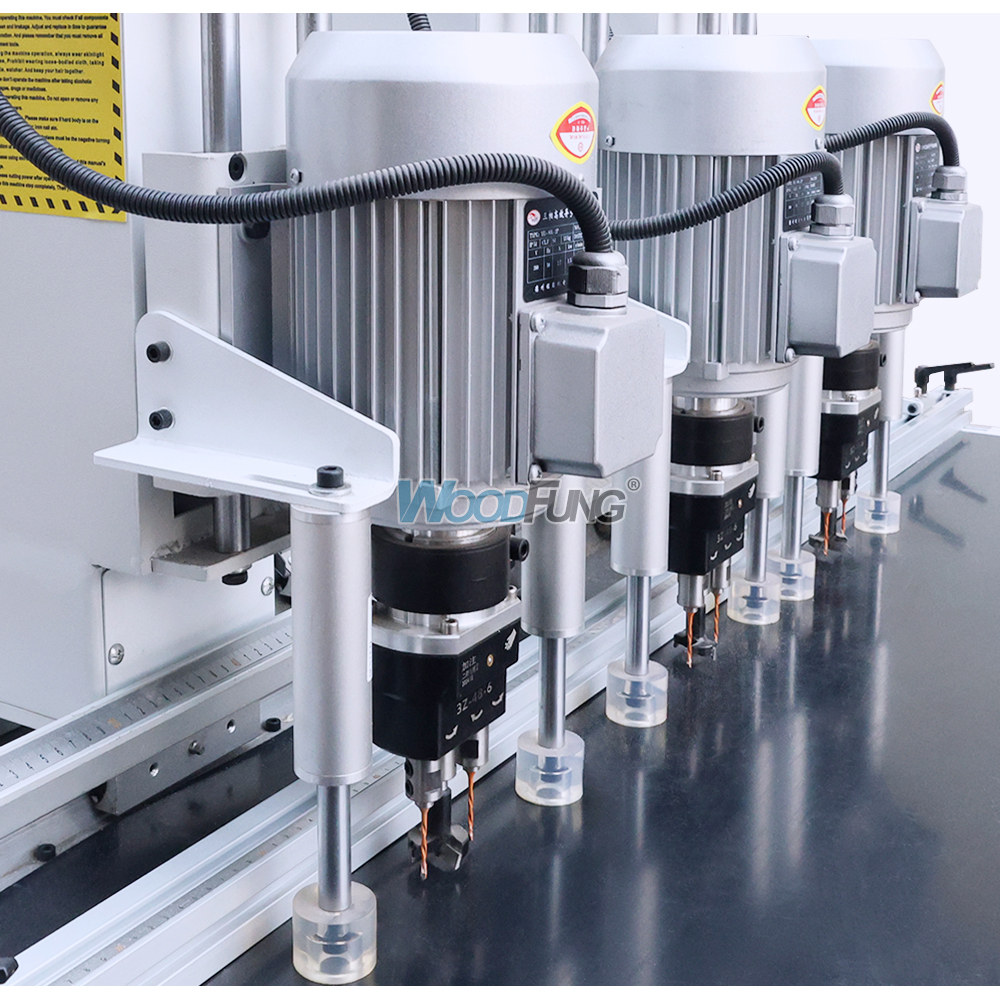

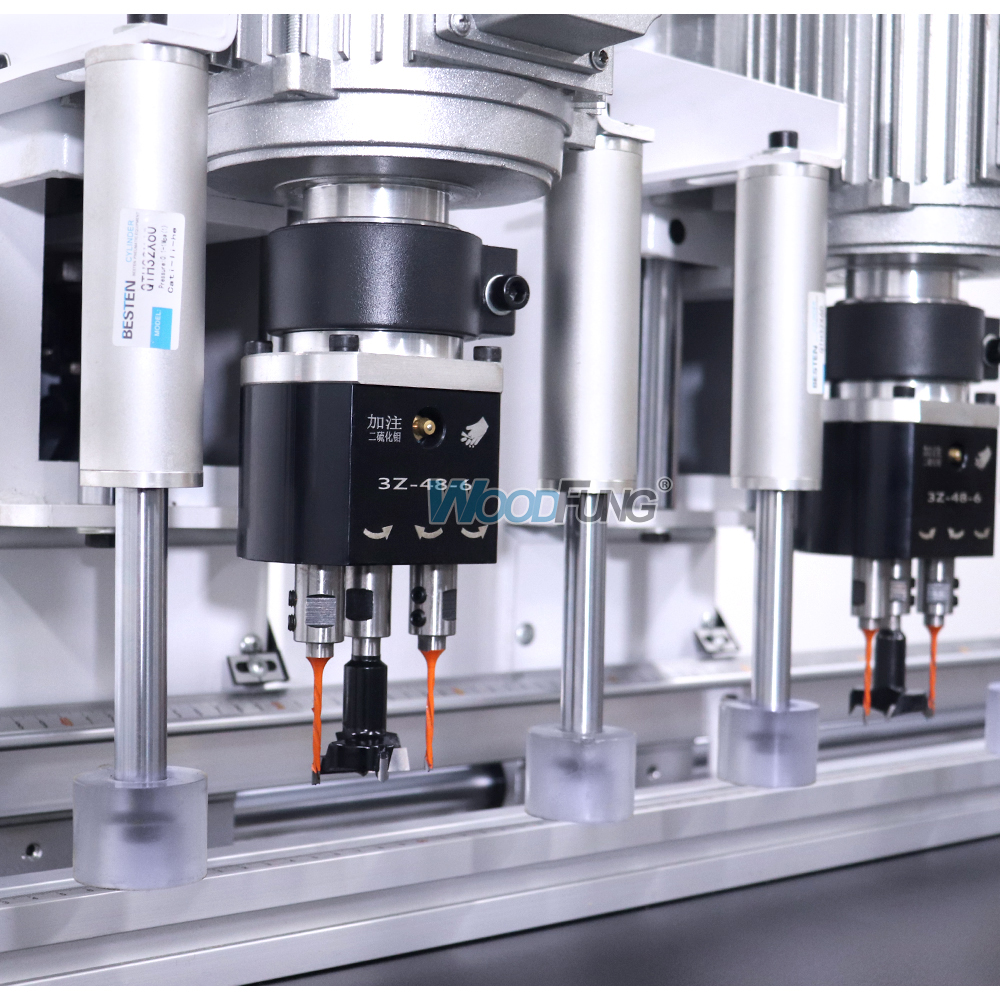

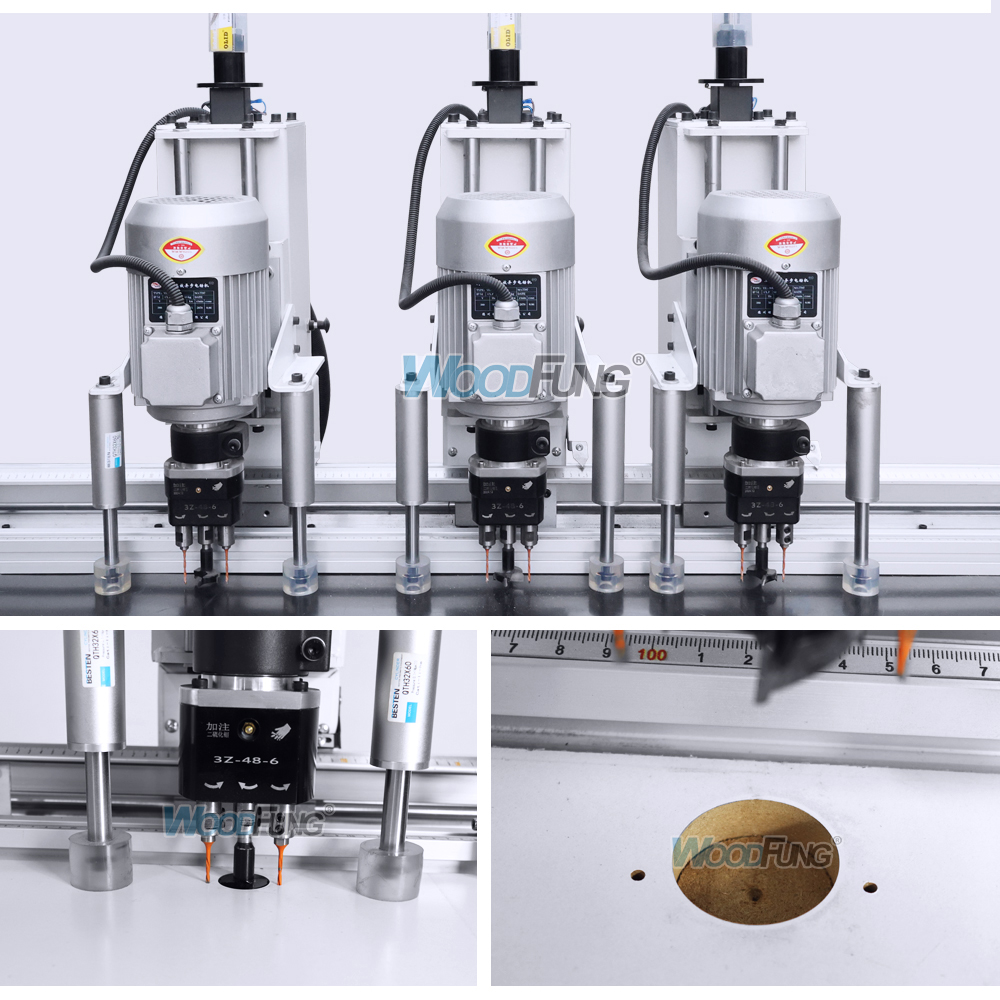

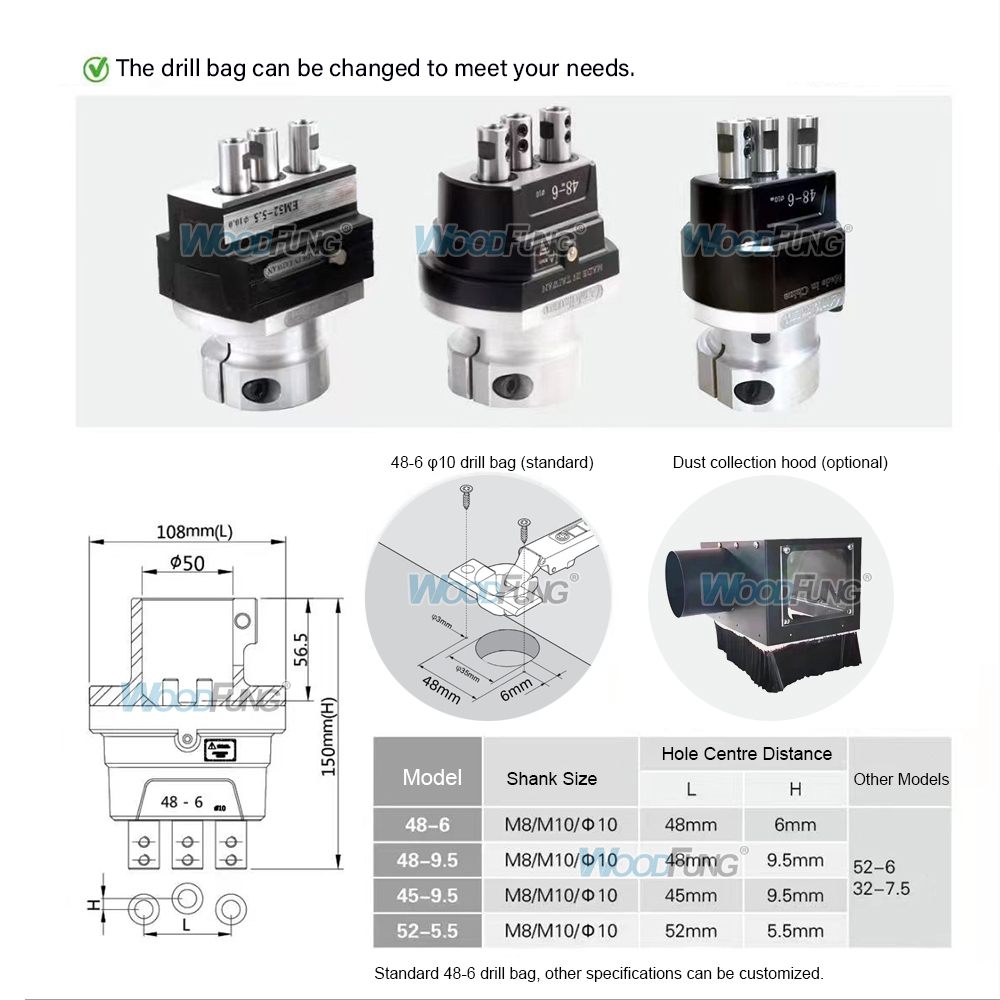

1. Drill spindle——Three drill bits, work better in hinge drilling.
1. Drill spindle——Three drill bits, work better in hinge drilling.

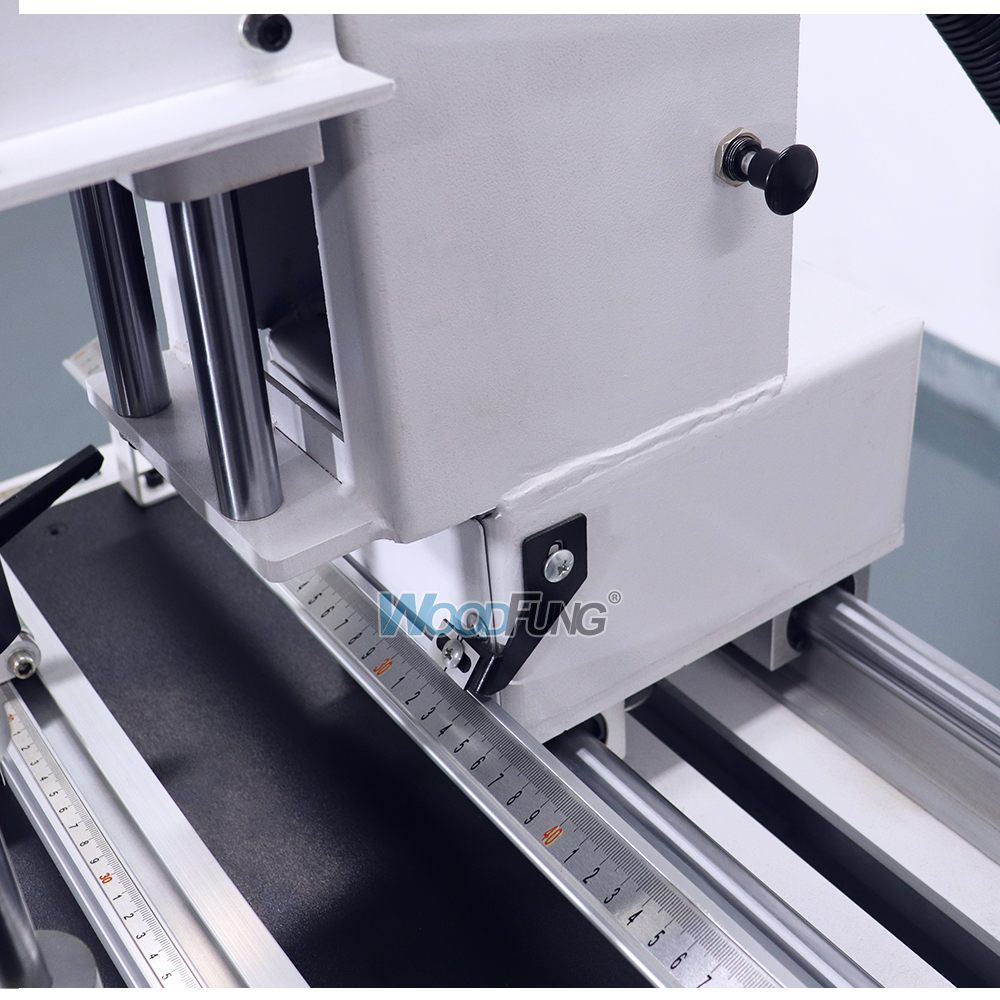

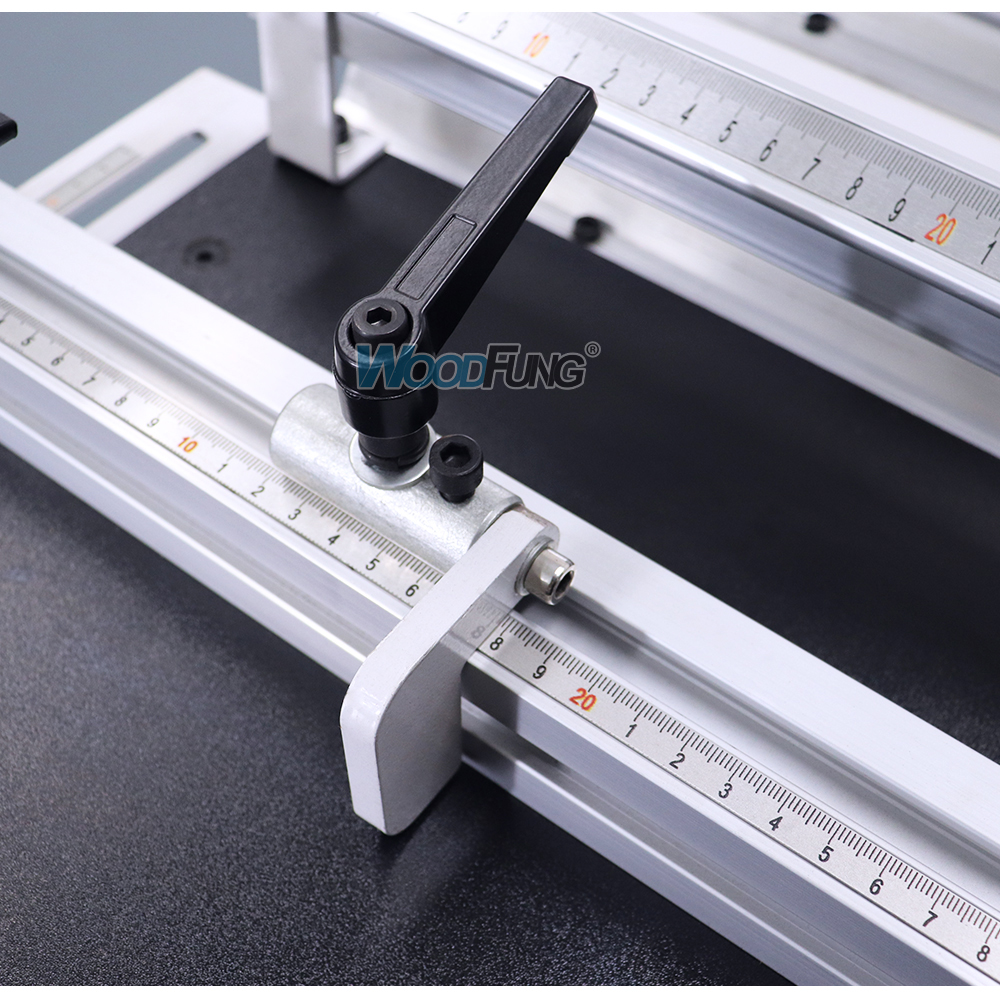

2.Ruler——Ruler size 850mm. It can be adjusted to customers' needs.

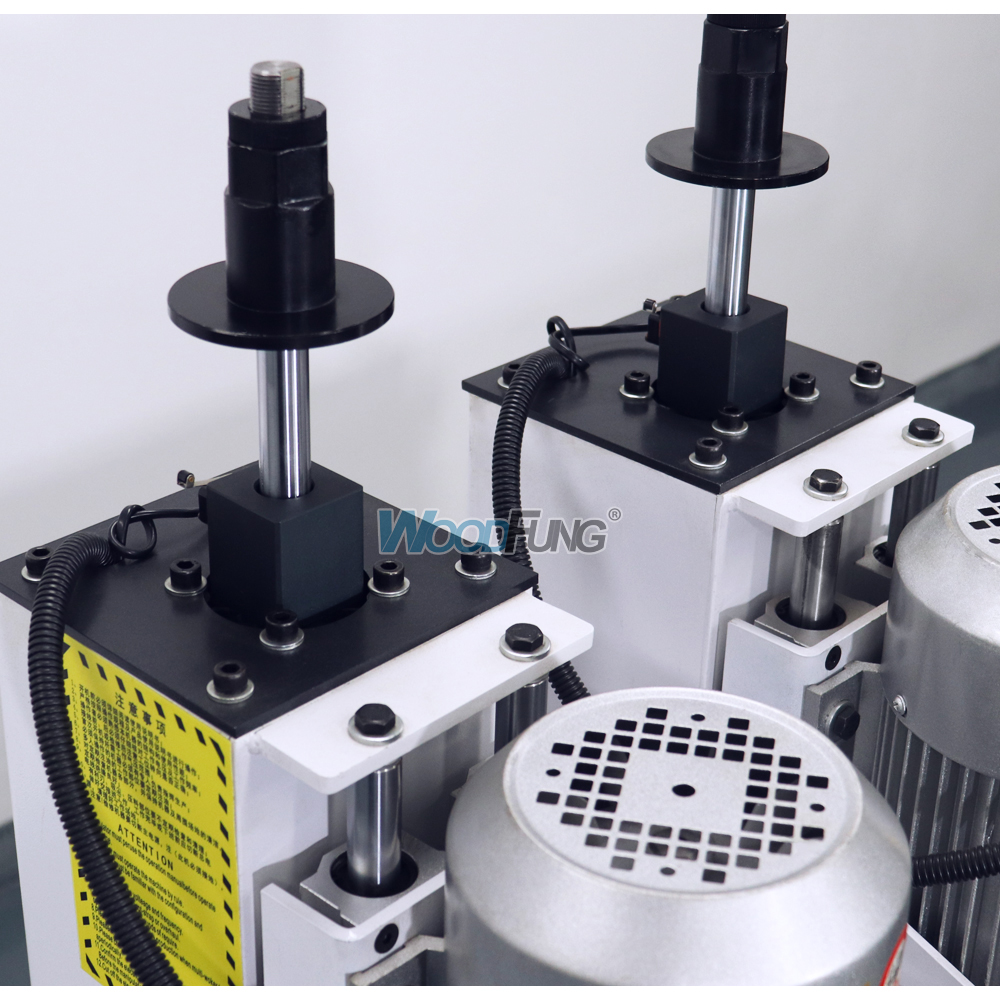

3. Adjust drilling thickness——It can adjust the drilled thickness.
4. Air cylinder——0.6-0.8mpa air pressure will be enough.

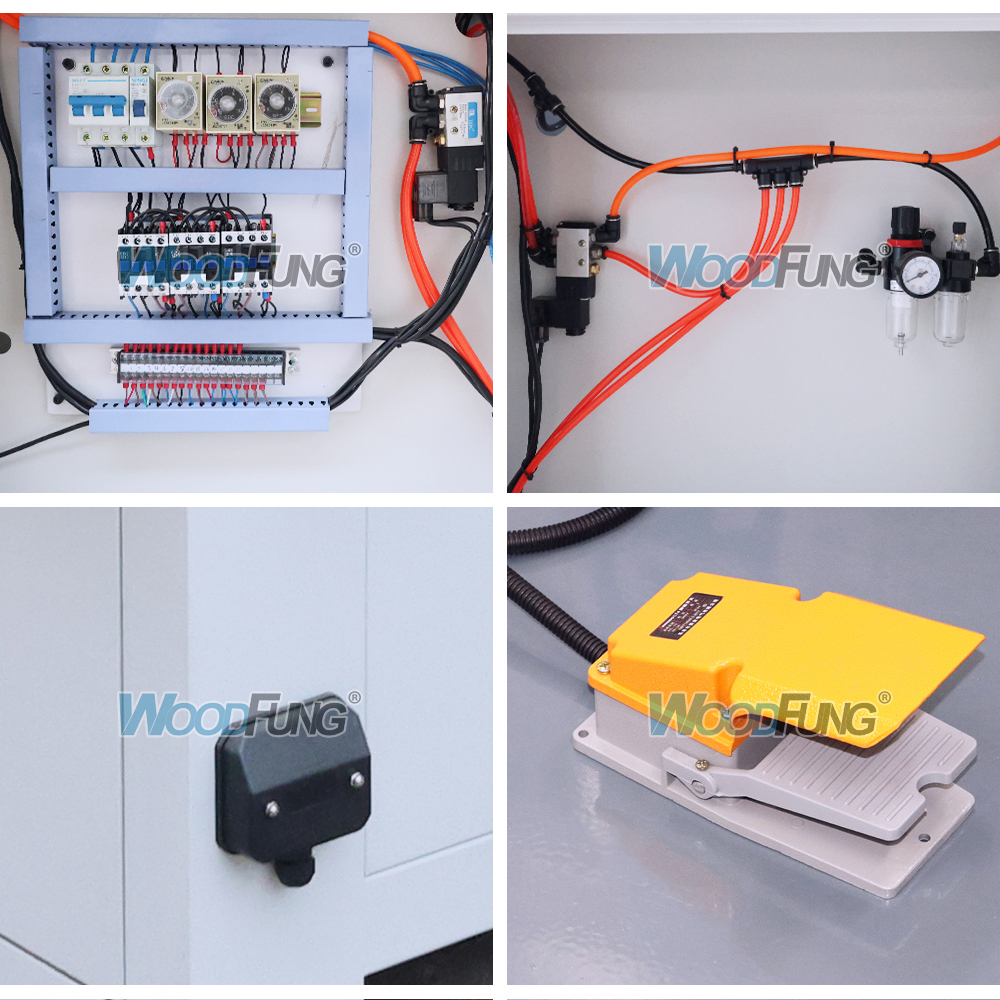

5. Electric box it's a Chinese famous brand.

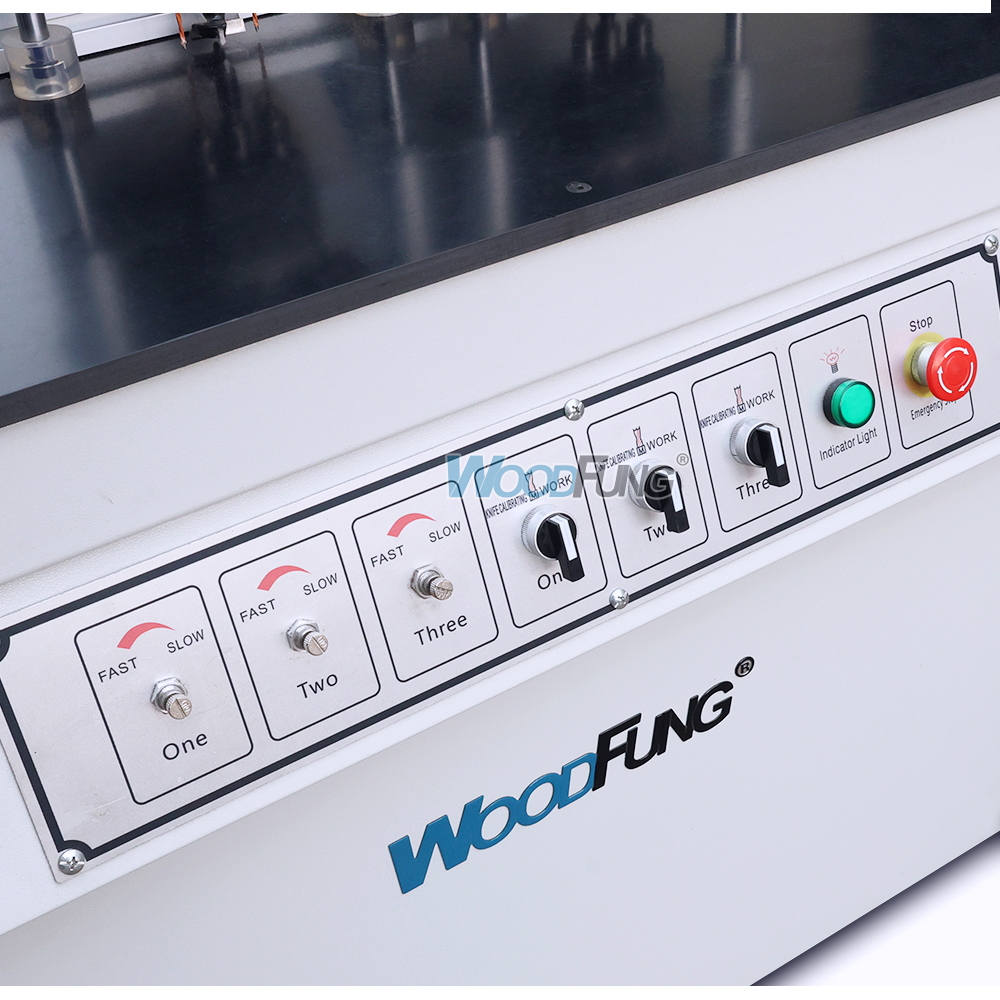

6. Control panel it's easy to operate.

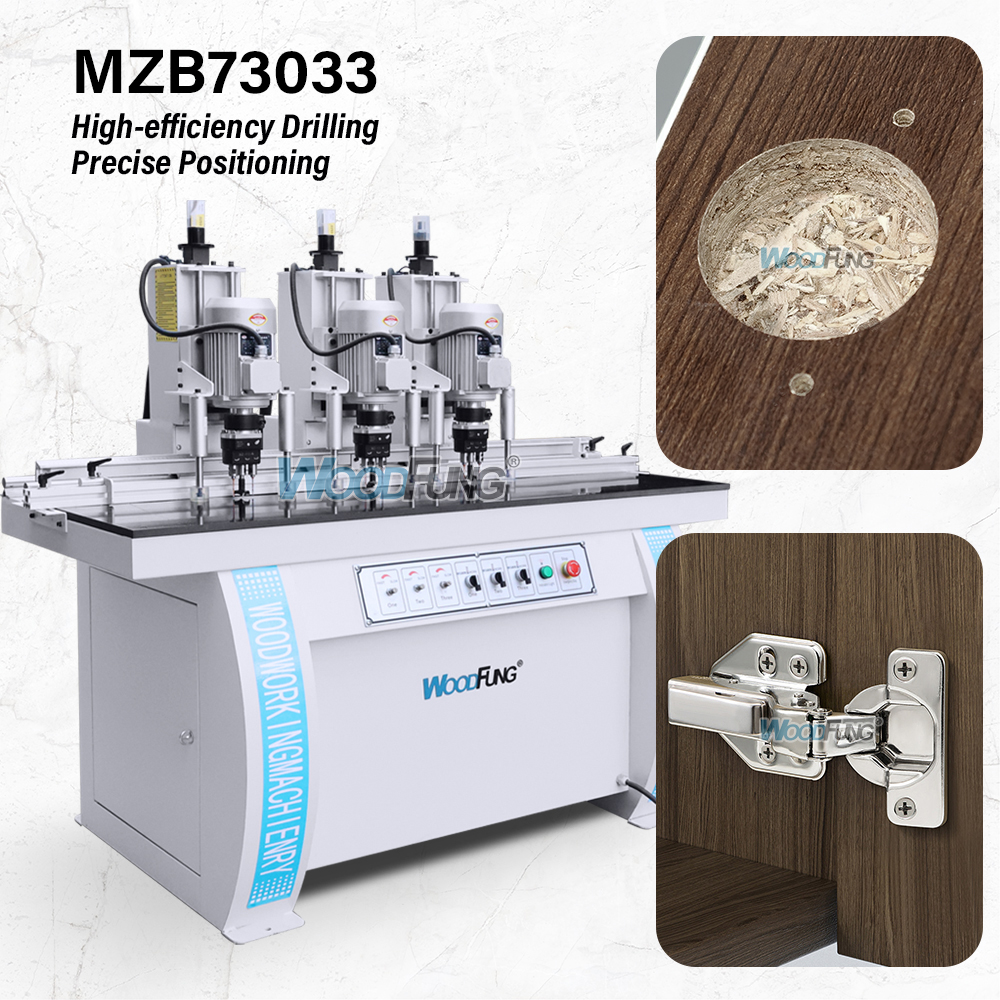

7. This machine combines all the elements needed for a furniture manufacturer to design and machine custom cabinets, wardrobes, custom furniture, and support products.
Service and Guarantee
Service and Guarantee
1. We welcome customization of body color, logo, label, shape, structure, etc.
2. The Woodfung brand welcomes you to become our exclusive regional agent.
3. We provide free picture and video shooting services for our agents.
4. This machine is provided with lifetime technical support and one-year warranty service by Woodfung Machinery.
5. We provide global retail customers with a variety of platform transaction methods, and door-to-door shipping services.
| Model | MZ73031A | MZ73032 | MZ73033 | MZ73034 |
| Max drilling diameter | 35mm | |||
| Max drilling depth | 50mm | |||
| Max working length | 1500mm | |||
| Minimum working length | 180mm | |||
| Main axis speeding | 2840rmp/min | |||
| Working pressure | 0.6~0.8Mpa | |||
| Voltage | 380V / 220V | |||
| Number of drills | 3*1 | 3*2 | 3*3 | 3*4 |
| Motor power | 1.1KW | 1.1KW*2 | 1.1KW*3 | 1.1KW*4 |
| Size | 800*700*1450mm/150kg | 1700×850×1700mm/550kg | 1600x700x1700mm/650kg | 2550x950x1550mm/800kg |
