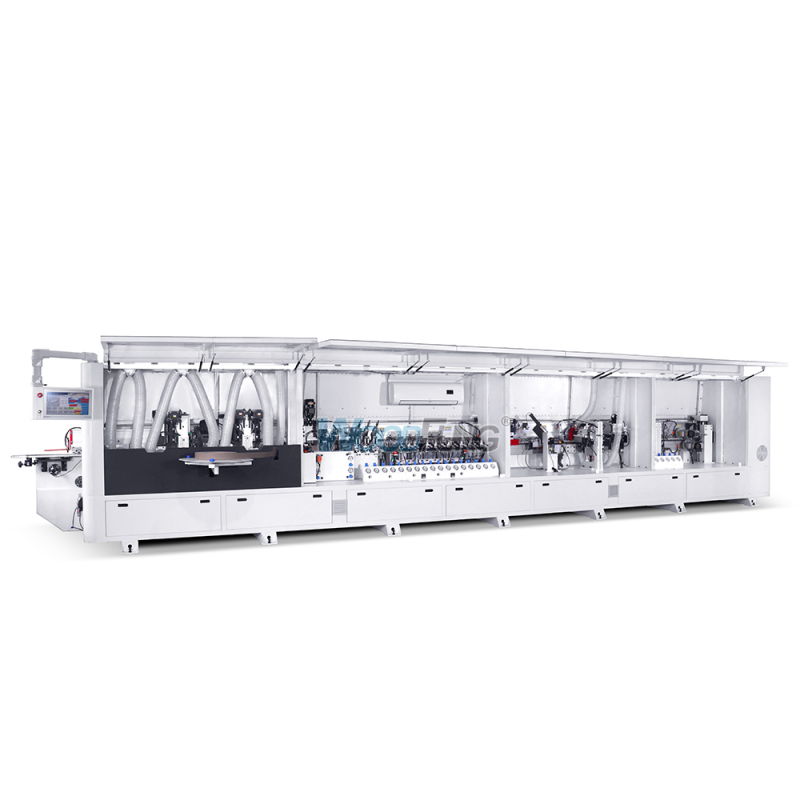

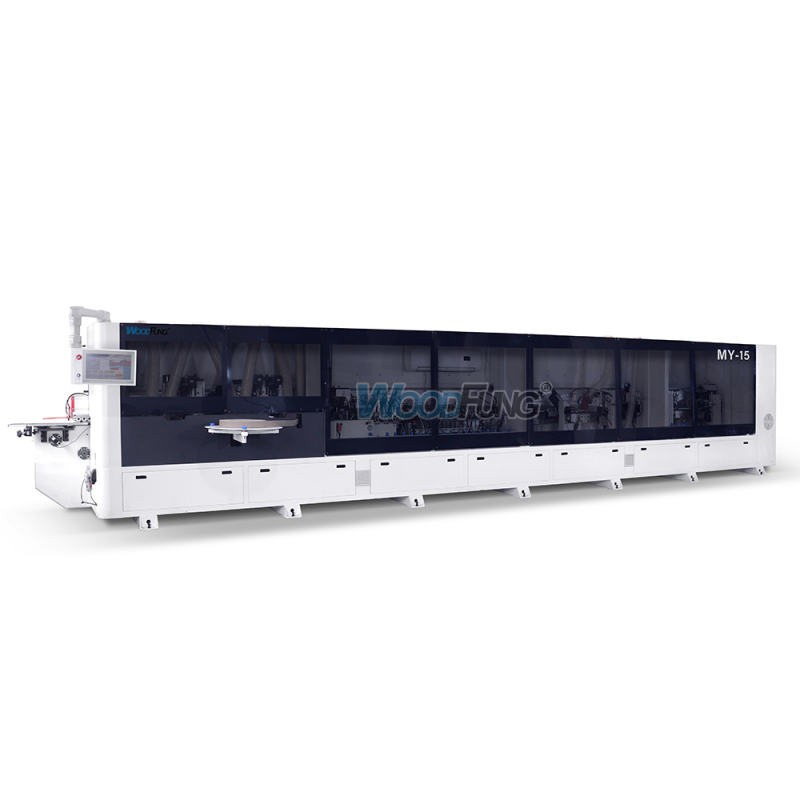

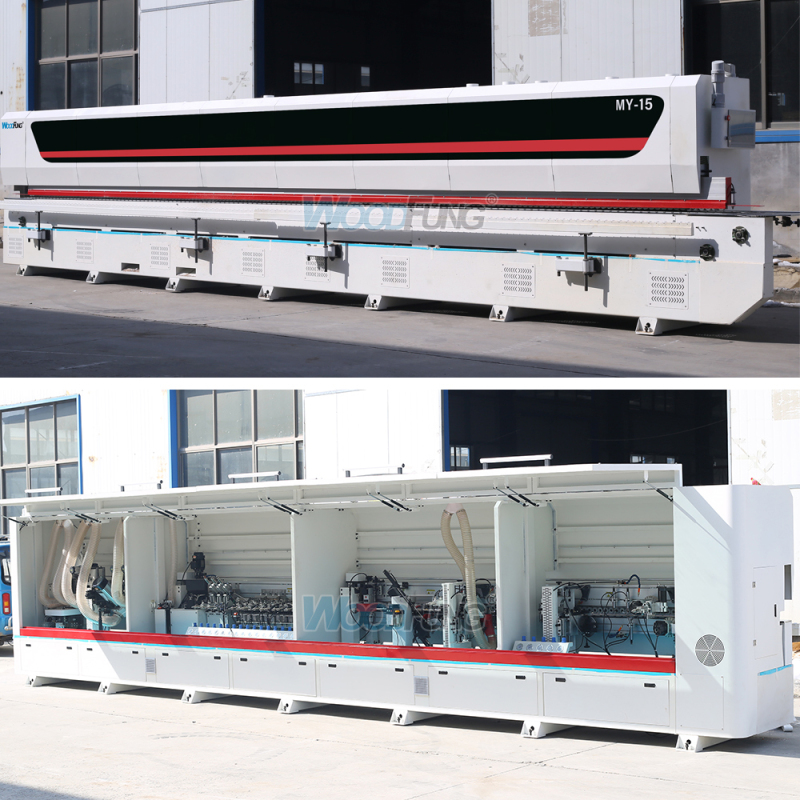

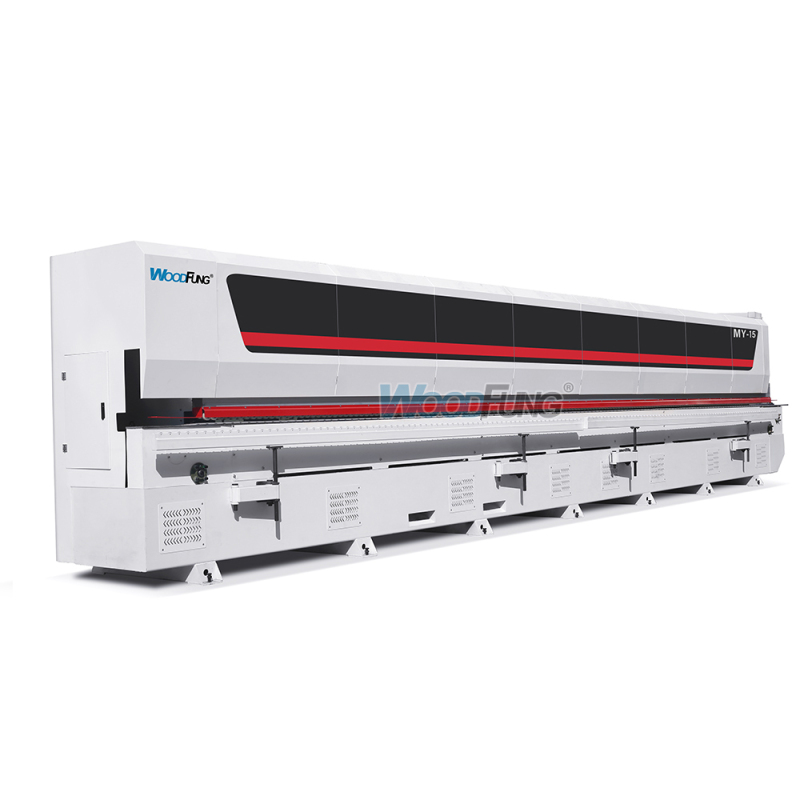

WOODFUNG MY15 Full Automatic China Pre-Milling 16 shapes PVC Soft Forming Edge Banding Machine

The Woodfung MY15 Softforming EDGE BANDING machines give your edges an individual profile. The different profile types available range from roof and drum profiles to S or inlay profiles. We offer units that will ensure perfect post-processing.
Description Review
Description

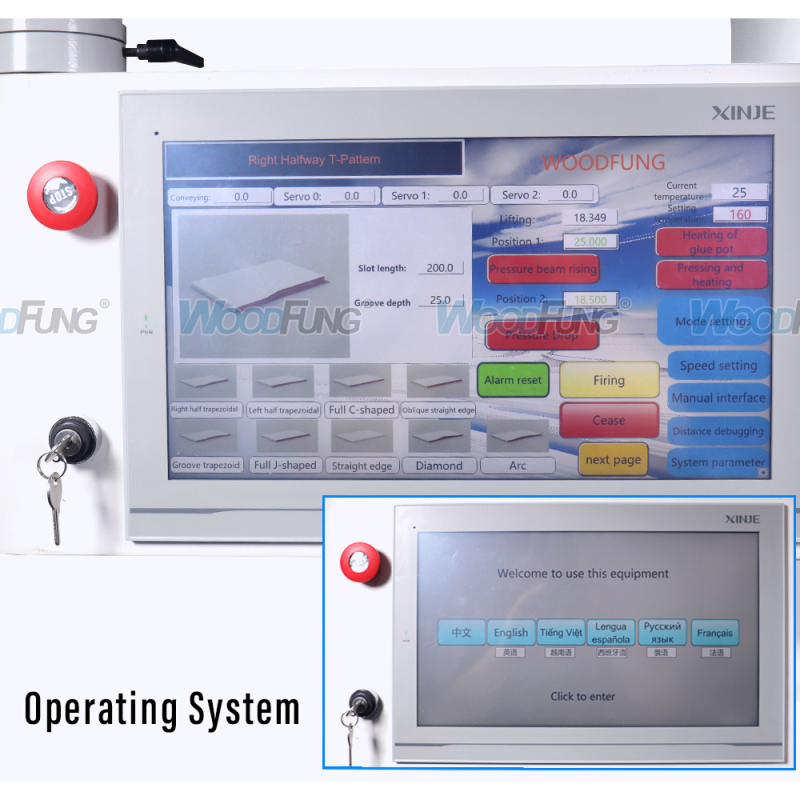

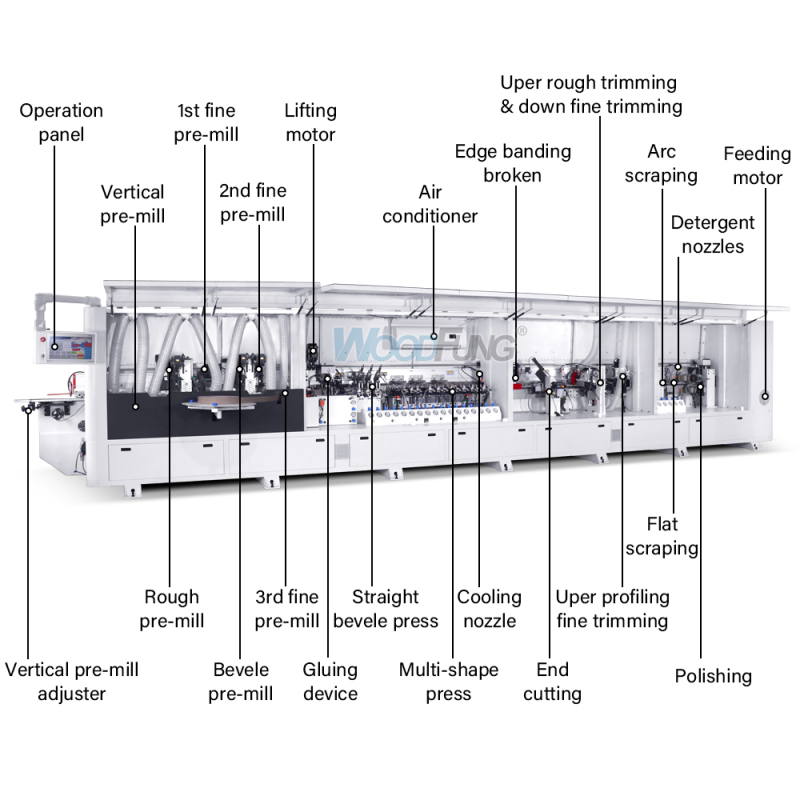

Features: 1、Multi-wheeled pressing, reduce the friction when pressing and pasting, the edge banding tape is more closely pasted, more solid and more beautiful. 2、Multiple pre-milling design, so that the plate will not be displaced when milling, to ensure that the slotting position is accurate, and the milling shape is more smooth. 3、Using 6 infrared baking lamps, 9 heating tubes, and air conditioning to stabilize the temperature of the pressing area, to ensure that the machine can operate normally in a low-temperature environment. 4、Operating system can switch processing shapes with one key, and support remote upgrade and remote control. 5、Built-in 16 kinds of processing shape, can be matched with dozens of cabinet door shape. 6、Rigid body, heavy-duty aluminum alloy pressure beam, and electrical parts of famous brands ensure that the machine can run stably. 7、Softforming unit with pressure zone for different profiles 8、Multiple compression zone with press roller set for straight edges and three further free slots. The profile is changed by rotating the pressure zone 9、The pressure roller sets with your preset profile rollers can be changed quickly and easily 10、Post-processing with trimming, belt sanding and finishing units from the range of modules available from WOODFUNG

Service and Guarantee
1. We welcome customization of body color, logo, label, shape, structure, etc.
2. The Woodfung brand welcomes you to become our exclusive regional agent.
3. We provide free picture and video shooting services for our agents.
4. This machine is provided with lifetime technical support and one-year warranty service by Woodfung Machinery.
5. We provide global retail customers with a variety of platform transaction methods, and door-to-door shipping services.

Specification
Model
MY-15
Transmission motor power
5.5KW
Total power
46kw
Vertical pre-milling motor power
2.2KW*2
Voltage
380V 50Hz
Bevel edge pre-milling motor power
4KW
Air source
0.6-0.8Mpa
Special-shaped rough milling motor power
4KW
Speed
6m/min
Special-shaped precision milling motor 1 Power
6KW
Glue pot capacity
2.6L
Special-shaped precision milling motor 2 power
6KW
Glue pot temperature
110-210℃
Special-shaped precision milling motor 3 power
0.55KW
Hot melt adhesive type
EVA
Precision milling servo motor power
0.75KW*3
Gas tank capacity
5L
Infrared baking lamp power
0.29KW*6
Cooling nozzle
Separating water
Air conditioning power
3.3KW
Cleaning nozzle
Wash board water
Edge banding strip slotting motor power
0.65KW
Oblique straight edge banding strip size
40*0.8mm
Glue coating motor power
0.3KW
Special-shaped edge banding strip size
56*0.6mm
Glue pot heating tube power
1.2KW
Edge banding material
PVC
Pressure beam motor power
0.37KW
Plate thickness
18-25mm
Pressing wheel heating tube power
0.02KW*7
Minimum plate length (edge banding direction)
350mm
Edge banding strip preheating heating tube power
0.02KW*2
Minimum plate width
150mm
Crushing motor power
0.55KW
Vacuum interface size
Φ150mm
Simultaneous motor power
0.55KW*2

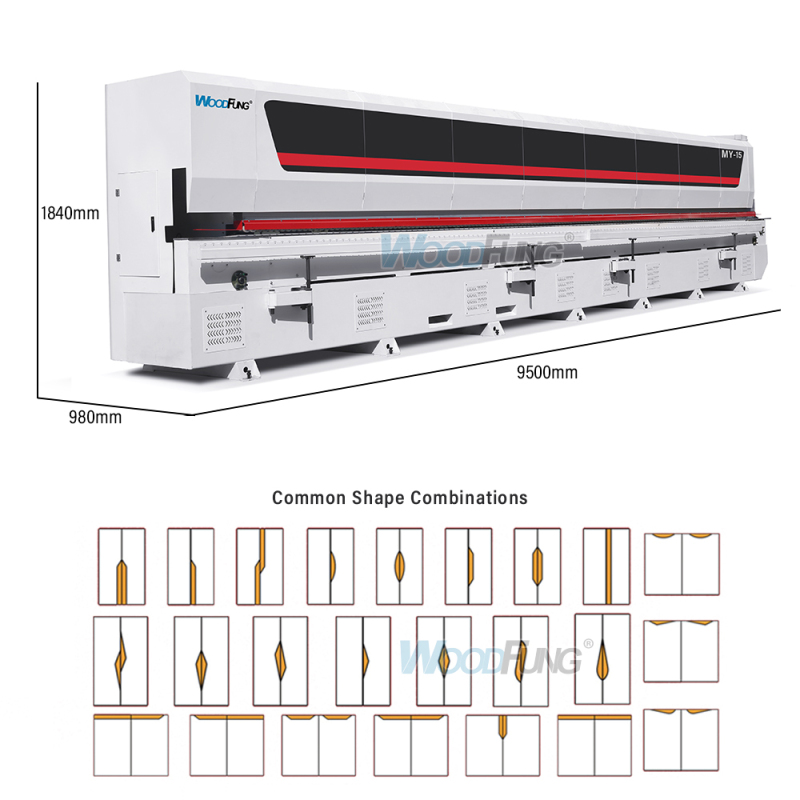

Overall dimensions
950*98*180CM
Trimming motor power
0.75KW*2
Weight
3500KG
Profile trimming motor power
0.55KW
Polishing motor
power
0.37KW*2

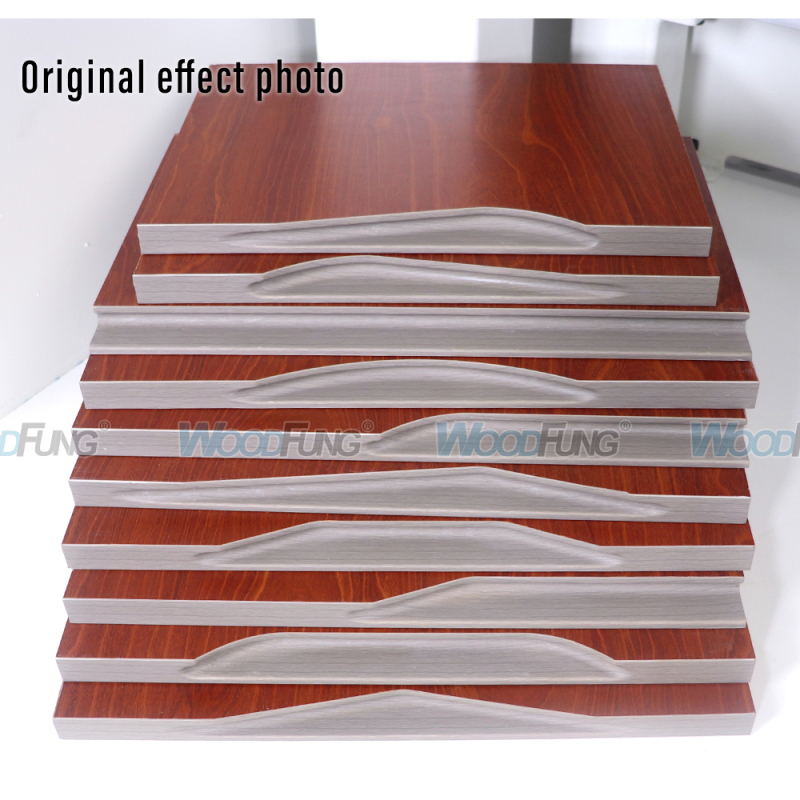

Processing shape
Straight,bevele & straight,full J-shape,C-shape,left water,right water,left half J-shape,right half J-shape,left round half
J-shape,right round half J-shape,left long triangle,right long triangle,triangle,trapezoid,cowhorn,arc.
